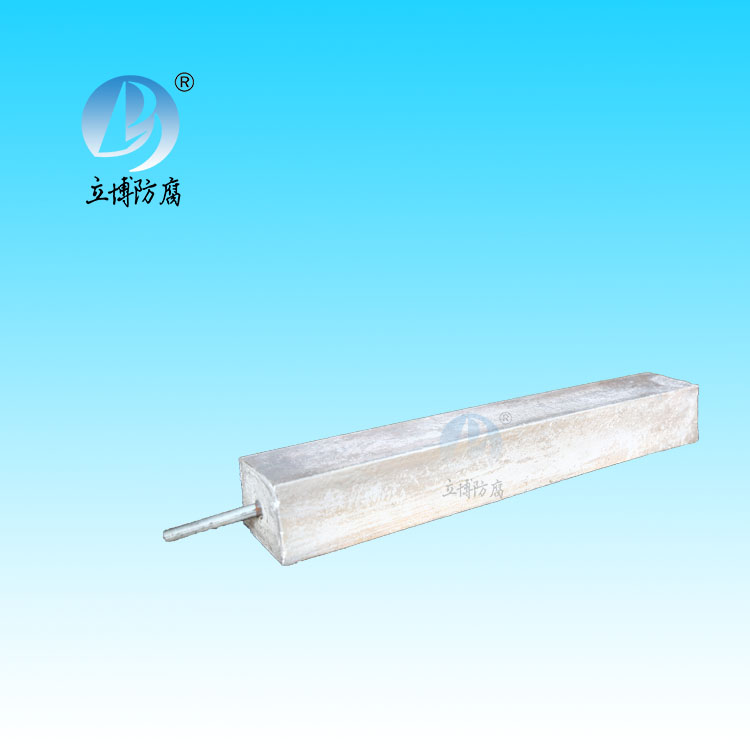

Single magnesium alloy sacrifice anode

Type:Magnesium alloy CP

Features:The magnesium alloy produced by our company is made of high quality raw materials. The anode potential is negative and the quantity of electricity generated per unit mass is large. It is an ideal sacrificial anode material.

Release DATE:2021-06-14

Implementation standard: GB/T17731-2015 magnesium alloy sacrifice anode
Magnesium alloy sacrifice anode is suitable for underground and fresh water oil, gas, water supply and drainage pipeline,

  underground cable, chemical industry, communication, harbor, ship, reservoir gate and other engineering anti-corrosion protection.

Online

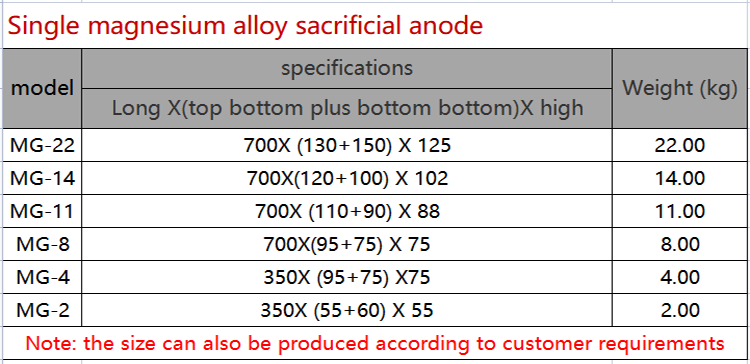

  Product type: Single magnesium alloy sacrifice anode

  Implementation standard: GB/T17731-2015 magnesium alloy sacrifice anode

  Main uses:

  Magnesium alloy sacrifice anode is suitable for underground and fresh water oil, gas, water supply and drainage pipeline,

  underground cable, chemical industry, communication, harbor, ship, reservoir gate and other engineering anti-corrosion protection.

  Product features:

  The magnesium alloy produced by our company is made of high quality raw materials. The anode potential is negative and the quantity of electricity generated per unit mass is large. It is an ideal sacrificial anode material.

  Suitable for cathodic protection of metal structures in soil, fresh water and seawater, such as oil and gas pipelines, storage tanks, hot water exchangers, condensers and so on.

  Magnesium alloy sacrifice anodes are produced according to the national standard GB/T17731-2015 Magnesium alloy Sacrifice Anodes, and the anodes used for pipelines also comply

  with SY/T0019-97 Design Code for Cathodic Protection of Sacrifice Anodes for Buried Steel Pipelines.

  The product has the following characteristics:

  (1) Small specific gravity and negative potential;

  (2) The driving voltage for iron is high and the current efficiency is low;

  (3) Especially suitable for high resistivity medium. (For resistivity greater than 100 ω ·m, it is recommended to use banded magnesium alloy sacrificial anode)

  Precautions for use:

  (1) Collision with steel structure should be avoided.

  (2) When used in the soil, it should be buried in a low-lying wet place.

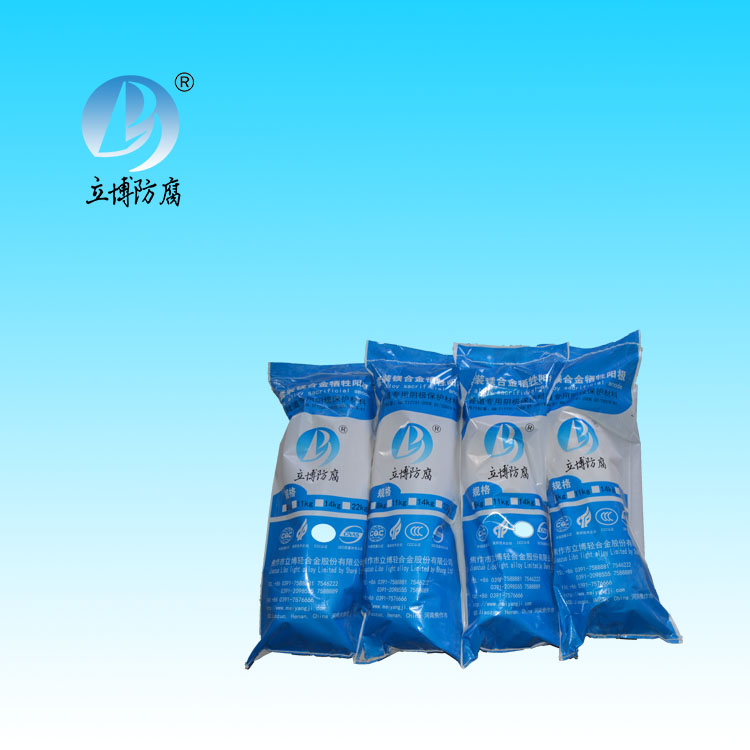

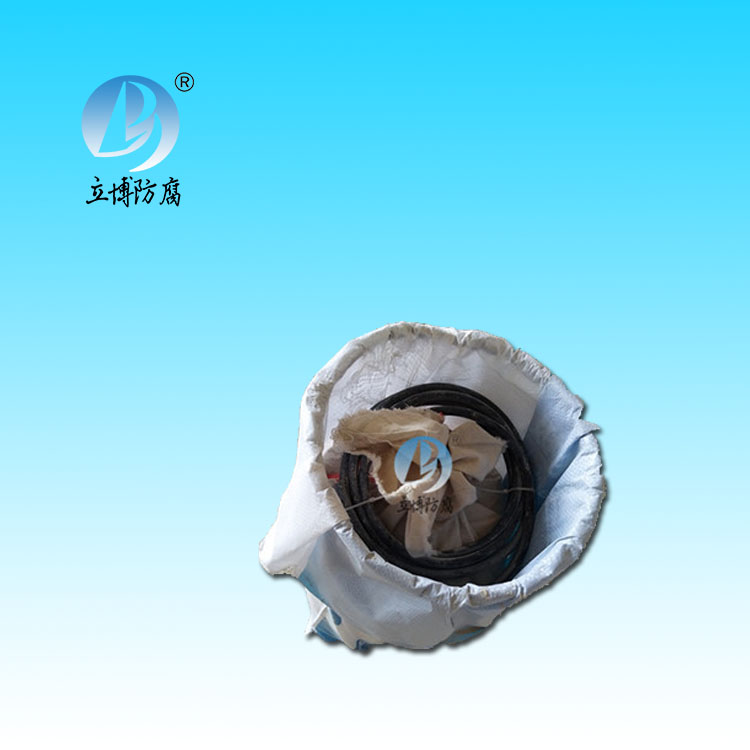

  (3) When used in soil, the anode must be buried in a packing bag.

  (4) When installing, the distance between the pipe and the anode and the distance between the anode and the anode should be greater than or equal to three meters, and the minimum should not be less than 0.3m.

  (5) After the anode is put into the soil pit in the dry soil area, the packing material should be fully soaked with water before backfilling the soil, so as to avoid the anode cannot fully conduct electricity.
